CB750 Hornet – 25YM

For 25YM, the trademark Hornet’s svelte, taut styling is amplified through a newly developed, powerful light unit. Giving it a look of its own within the three-bike Hornet family, the CB750’s dual LED dual projector headlight sits low and centered for a true streetfighter silhouette.

Model Overview

To maximise the engine’s potential, it’s housed in a steel diamond frame, which is extremely light weight thanks to optimisation of wall/pipe thickness and stiffness. For optimal agility and rider feedback, suspension is top quality: Showa 41mm SFF-BPTM USD forks and rear shock (with new settings for 25YM) operating through Pro-Link. Dual four-piston, radial-mount calipers stop hard while the tyres are sized to provide perfect levels of grip and agility – a 120-section front matched to 160 rear.

Find Dealer
Specification

Gallery

The 25YM CB750 Hornet will be available in the following colour combinations:

  • **NEW** Mat Ballistic Black over Mat Ballistic Black Metallic
  • **NEW** Digital Silver Metallic over Mat Ballistic Black Metallic
  • **NEW** Glint Wave Blue Metallic over Mat Ballistic Black Metallic

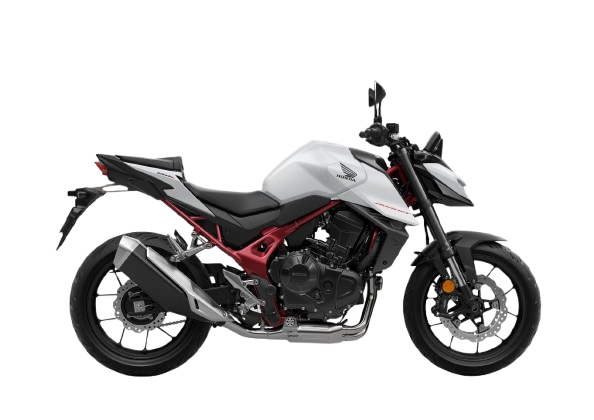

  • Mat Pearl Glare white over Cuprite Red Metallic
View Gallery

Key Features

Engine
  • 755cc parallel twin 8 valve unicam engine
  • 5kW @ 9,500rpm and 75Nm @ 7,250rpm
  • 270° crankshaft and uneven firing order for maximum engine character
  • Patented Vortex Air Flow ducts
  • Assist /slipper clutch control
  • 23km/l fuel economy with a potential 340km tank range
Styling & Equipment
  • Hornet style defines razor-sharp minimalism
  • Compact new dual projector headlight throws out powerful beams
  • Upright riding position for natural control
  • New five-inch TFT display with four-way toggle switch and Honda RoadSync smartphone connectivity
  • Rear indicators feature Emergency Stop Signal (ESS) and auto cancel technology
Chassis
  • Lightweight 16.6kg steel diamond frame with integrated subframe
  • Showa 41mm SFF-BP USD forks and Pro-link 7-stage adjustable rear shock with new 25YM settings for increase front end feel
  • Four-piston front calipers/296mm wave discs; single piston caliper/240mm rear disc

Specifications

ENGINE
Type Liquid-cooled SOHC 4-stroke 8-valve Parallel Twin with 270° crank
Displacement 755 cc
Bore x Stroke (mm) 87 mm x 63.5 mm
Compression Ratio 11.0:1
Max. Power Output 67.5 kW at 9,500 rpm 34.5 kW at 5,250 rpm
Max. Torque 75 Nm at 7.250 rpm 66 Nm at 4,750 rpm
Stationary Noise Level (dB) max. 77 dB
Max Speed 205 km/h 170 km/h
Oil Capacity 3.8 L
Starter E-Starter
FUEL SYSTEM
Carburation PGM-FI Fuel Injection
Fuel Tank Capacity 15.2 L
CO2 Emissions WMTC 99 g/km 95 g/km
Fuel Consumption 4.3 L/100km 4.1 L/100km
FUEL SYSTEM
Carburation PGM-FI Fuel Injection
Fuel Tank Capacity 15.2 L
CO2 Emissions WMTC 99 g/km 95 g/km
Fuel Consumption 4.3 L/100km 4.1 L/100km
ELECTRICAL SYSTEM
Battery Type AGM
Battery Capacity 12 V 9.1 Ah (20h)
DRIVETRAIN
Clutch Type Wet multiple, Assisted slipper clutch
Transmission Type 6-speed Manual Transmission
Final Drive Chain
FRAME
Frame Type Diamond Steel Frame
CHASSIS
Dimensions (L´W´H) 2,090 mm x 780 mm x 1,085 mm
Wheelbase 1,420 mm
Caster Angle 25
Trail 99 mm
Seat Height 795 mm
Ground Clearance 140 mm
Kerb Weight 192 kg
Turning radius 2.7m
SUSPENSION
Front Showa 41 mm SFF-BP USD, 130 mm travel
Rear Monoshock damper, Prolink swingarm, 130 mm travel
WHEELS
Wheels Front 17M/C x MT3.50 5Y-Spoke Cast Aluminium
Wheels Rear 17M/C x MT4.50 5Y-Spoke Cast Aluminium
Tyres Front 120/70ZR17M/C (58W)
Tyres Rear 160/60ZR17M/C (69W)
BRAKES
ABS Type Dual-channel ABS
Brakes Front Radial mounted four-piston Nissin brake caliper, 296 mm floating double disc
Brakes Rear Single piston caliper, 240 mm single disc
INSTRUMENTS & ELECTRICS
Instruments Five-inch TFT Panel Multi information display
Headlight LED (2-square projecters)
Taillight LED
USB Type - C
Auto Winker Cancel Yes
Security System HISS
Riding mode Sport, Standard, Rain and User Mode
HSTC Three Level + OFF
Additional Features ESS
