The TRX 520 is a heavy-hitting ATV built for hard work and hauling big loads – day in, day out.
Updates:
We’re currently updating old product imagery on our Honda Ireland website, apologies for any inconvenience.
The ATV that just loves to get stuck in.

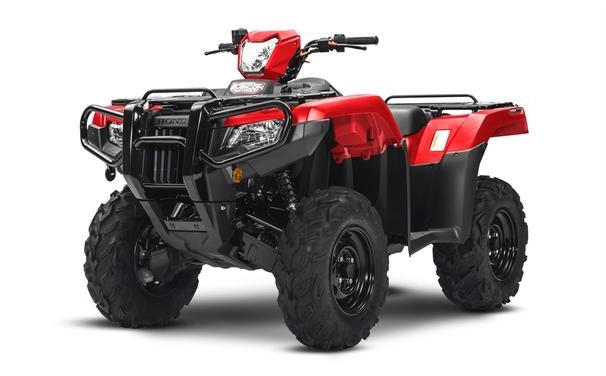

TRX 520FA6 ATV
At a Glance:
The TRX 520 is a heavy-hitting ATV built for hard work and hauling big loads – day in, day out.
Engine: 518cc liquid-cooled, longitudinally mounted single-cylinder four-stroke
Towing Capacity: Up to 599 (kg)
RRP : €14,499.00
LONGITUDINAL ENGINE LAYOUT
By orienting the engine crankshaft front to back, we route the flow of power straight to the wheels without any unnecessary right-angle detours, reducing powertrain friction and putting more grunt to the ground.
Specifications
| Classification | Heavy duty ATV |
| Engine | 518cc liquid cooled, longitudinally mounted single-cylinder four-stroke |
| Carburation | PGM-FI 36mm |
| Ignition | Full-transistorized with electronic advance |
| Starter | Electric |
| Transmission | Automatic Dual Clutch Transmission; 5 speed + reverse and high/low |
| Drive | Direct front and rear driveshafts with TraxLok™ and locking front differential. |
| Front Suspension | Double wishbone; 185mm travel |
| Rear Suspension | Independent dual-arm; 215mm travel |
| Power Steering | Yes |
| Front Brakes | 190mm dual hydraulic discs |
| Rear Brake | 170mm single hydraulic disc |
| Front tyres | 25 x 8-12 |
| Rear tyres | 25 x 10-12 |
| Fuel Capacity (l) | 14.7L, incl. 4.9L res. |
| Bore x Stroke (mm) | 96.0 x 71.5 |
| Dimensions - Length (mm) | 2140 |
| Dimensions - Width (mm) | 1200 |
| Dimensions - Height (mm) | 1230 |
| Wheelbase (mm) | 1290 |
| Seat Height (mm) | 910 |
| Ground Clearance (mm) | 240 |
| Towing Capacity (kg) | 599 |
