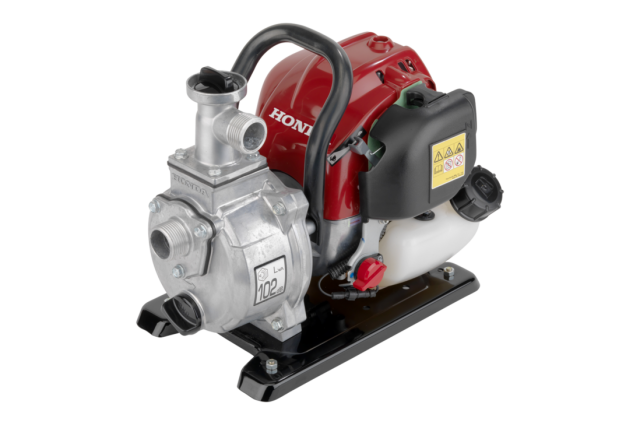

A compact water pump for around the home.
When you need strong and reliable water pressure, our Lightweight pumps will get the job done.
Lightweight water pump pushes 140 litres per minute, debris up to 5.7mm and a total head of 36m.
A GX25 4-stroke engine pumps 140 litres a minute with 3.6 bar of pressure and 1hour 20 minutes running time.
Max output: 140-240 L/min
Run time: 1h20-1h30 approx
Total head: 36-40 Metres
Pressure: 3.6-4 Bars
An ideal choice for homeowners, gardeners and boat owners, our Lightweight water pumps are perfectly compact and easy to transport; they also push out good volume and distance when you need it. And when the job’s done, they’re easily stored away.
What makes our Lightweight water pumps so effective is the craftsmanship of the hose seals and O-rings – they ensure air can’t be drawn in, which causes the all important vacuum to be lost.
Also known as ‘total head’, it’s the maximum height the pump can force water from suction head to discharge head. Our Lightweight pumps can push it up to 40m – that’s around the length of four buses parked end to end. That’s far, far away.
The name Lightweight refers only to their size, not power – they can move up to 240 litres a minute. Perfect for simple jobs. It’s made possible by their hard-working 4-stroke engines that push out up to 7000 rpm; that’s pretty exceptional for their size
If water gets near the engine, things can quickly gush downhill. Our Lightweight water pumps use mechanical seals – they’re hard-wearing and durable, and keep the water away. These pumps can also handle small bits of debris up to 3mm in size – there’s a strainer to make sure nothing bigger gets through
Come rain or shine, our OHV 4-stroke engines won’t let you down.
They are reliable, have low emissions and low vibration – automatic decompression makes them so quick and easy to start.
| Maximum output capacity (L/min) | 140 |
| Inlet/outlet diameter thread type (mm/inches) | 25/1-PF |
| Total head (m) | 36 |
| Suction head (m) | 8 |
| Pressure (bars) | 3.6 |
| Debris size capacity (mm) | 6 |
| Engine Model | GX25 |
| Engine type | 4-stroke, OHV,** 1 cylinder |
| Displacement (cm³) | 25 |
| Bore x stroke (mm) | 35 x 26 |
| Engine speed (rpm) | 7000 max |
| Engine net power (kW) | 0.72 |
| Cooling system | Forced air |
| Ignition system | Transistor |
| Oil capacity (L) | 0.1 |
| Fuel tank capacity (L) | 0.55 |
| Operating time | 1h20 approx |
| Starter system | Recoil |
| Sound pressure level at workstation (dB(A)) | 86 |
| Guaranteed sound power level (dB(A)) | 102 |
| Length (mm) | 325 |
| Width (mm) | 220 |
| Height (mm) | 300 |
| Dry weight (kg) | 6.1 |
